DFW-12 Cable Distribution Box High Voltage Outdoor Compact Substations

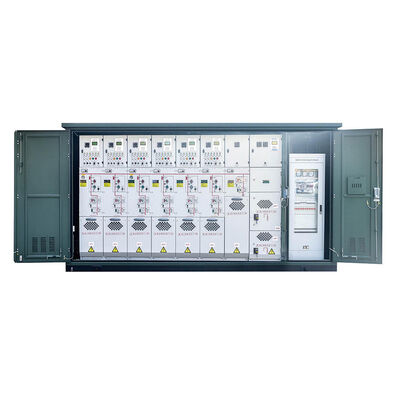

The DFW-12 outdoor high-voltage cable branch box is an advanced, fully insulated, and sealed power distribution solution engineered specifically for power cable connection and tap configurations. This equipment integrates sulfur hexafluoride (SF6) load switches or vacuum circuit breakers as control links, paired with touch-safe shielded silicone rubber cable connectors that provide a strong active load and no-load breaking capability, along with short-circuit isolation. To maximize system integrity, it can be seamlessly outfitted with lightning arresters and ground fault indicators based on site requirements.

When short-circuit anomalies occur on a branch circuit, fast-acting fuses or the circuit breaker's disconnecting mechanism quickly isolate the fault line, allowing the rest of the ring network to remain fully energized. Widely specified for 10kV power grid taps, urban road reconstruction, residential quarters, industrial commercial zones, mining facilities, and railways, this flood-resistant kiosk delivers an exceptionally flexible, safe, and reliable solution that drastically minimizes capital investments while boosting grid supply continuity.

• Premium SF6 & Vacuum Switching Units: Incorporates high-end sulfur hexafluoride load switches or vacuum circuit breakers to handle intense active load routing and safe fault-current separation.
• Touch-Safe Shielded Connections: Uses fully insulated, touchable shielded silicone rubber cable connectors that provide excellent moisture, flood, and environmental degradation resistance.
• Selective Branch Fault Isolation: Built-in fuses and protective lockouts swiftly strike down malfunctioning branch circuits without affecting parallel healthy lines, keeping downstream users live.
• Flexible Smart Grid Expansion: Features an adaptable modular footprint that easily accommodates smart telemetry ground fault indicators and lightning arresters for long-term maintenance-free operation.

• DFW: Outdoor Cable Tap Box Architectural Series
• [ ] / [ ]: Incoming and Outgoing Circuit Quantities
• K: Programme Code of Switching Type (Default means common type without switch link)
• 630: Rated Current Rating parameter (630A)
• 12: Rated System Voltage Level (12kV)
• [ ]: Specific Programme Scheme Identification Number

• Altitude Tolerances: Certified for full-capacity distribution performance at altitudes up to 1000m above sea level.
• Ambient Air Temperature Limits: Rated to operate safely within an outdoor atmospheric temperature range from -30°C up to +40°C.
• Relative Humidity Thresholds: Daily average relative humidity must remain at or below 95%, and monthly average relative humidity must not cross 90%.
• Seismic and Site Safety: Validated to withstand seismic shaking intensities up to 8 degrees; the installation site must be clear of violent vibrations, open flames, or hazardous chemical explosive dust clouds.

Modern 10kV urban power distribution networks require premium flood-proof security, robust switch gear reliability, and targeted fault mitigation. JNCN Power delivers an elite industry response built on the following advantages:

• Advanced SF6 Interrupter Integration: Our branch boxes utilize premium 0.45 Bar hermetically sealed SF6 load breakers, maintaining an incredibly low leakage rate of < 0.1% per year to handle full 630A loop breaking safely.
• True All-Weather Flood-Resistant Defense: Outfitted with an IP33 robust weatherproof shell and high-grade touch-safe shielded silicone rubber cable nodes, our boxes resist heavy water pooling and high-moisture creepage tracking.
• Smart Autonomous Grid Fail-Safe: When a local short-circuit hits a cable tap, our selective fuse/breaker loops isolate the bad branch in milliseconds, preventing multi-district power outages.
• Excellent High-Voltage Dielectric Buffers: Validated to endure a 75kV lightning impulse spike and 42kV power-frequency stresses, this enclosure protects downstream operations against severe grid surges.
