DFW Compact Unit Substation IP33 Protection Rate Long Lasting Box Type Substation

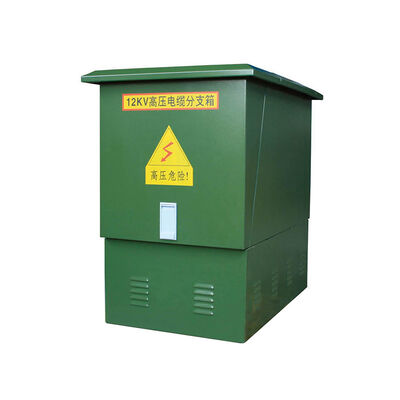

The DFW series cable branch box is an outdoor-designed, fully sealed, and fully insulated power distribution solution engineered for high-voltage commercial and municipal grid routing. It boasts an enclosure protection rating of IP33, with the internal cable connector bracket made of robust stainless steel plates. The main outer shell is constructed from 2mm high-quality stainless steel plates, structurally divided by a cable warehouse roof plate into a busbar barn and a cable warehouse section.

The sealed busbar room features an integrated 2mm steel plate surround to anchor casing lines, and utilizes a certified 180mm phase clearance spacing. Complete with short-circuit indicators, live monitors, and secure fixing clips, this system serves as an exceptional, maintenance-free, and long-lasting outdoor infrastructure hub.

• Premium 2mm Stainless Cladding: Built with a heavily reinforced 2mm stainless steel casing to effectively combat atmospheric oxidation, rust, and accidental mechanical impact.
• Dual-Compartment Architecture: Separated by a dedicated roof plate into a top busbar room and a lower cable warehouse, allowing safe cable entering, exiting, and localized maintenance.
• High Dielectric Isolation Standards: Designed with a certified 180mm structural spacing between phases, reinforced with specialized silicone rubber insulation for exceptional protection against surface creepage.
• Real-Time Diagnostic Safety Array: Outfitted with integrated short-circuit fault indicators and live monitoring displays, enabling rapid on-site troubleshooting and ensuring operator protection.

• DFW: Cable Tap / Branch Distribution Box Engineering Classification
• [ ]: Configured Number of Cable Routing Circuits / Taps
• [ ]: Voltage Class Indication (e.g., 12kV Primary System Rating)
• A: Integration Option ("A" designates built-in lightning arrester; default indicates no arrester)

• Altitude Limits: Certified for outdoor distribution service at altitudes up to 3000 meters above sea level.
• Ambient Air Temperature Parameters: Capable of maintaining safe mechanical and electrical tolerances across an outdoor air temperature range from -40°C up to +50°C.
• Wind Speed Resistance: Rigid frame architecture is certified to withstand high wind velocities up to 34m/s (not exceeding 700Pa wind pressure).
• Relative Humidity Thresholds: Engineered to operate reliably under extreme humidity conditions, tolerating a daily average relative humidity up to 95% and a monthly average up to 90%.
• Mechanical Vibration & Ingress Safety: Designed to withstand horizontal vibrations up to 0.4m/s² and vertical accelerations up to 0.15m/s² at installation sites with a slope not exceeding 3°. The surrounding environment must be free from volatile, explosive, or highly corrosive pollution.

Managing high-voltage underground cable branching in modern municipal zones and heavy industrial areas requires complete weatherproofing, reliable isolation, and absolute operator safety. JNCN Power provides an exceptional response through the following technical highlights:

• Heavy-Duty 2mm Stainless Armor: Unlike thin, standard sheet metal enclosures that warp and rust over time, our boxes feature a 2mm premium stainless steel shell and IP33 protection, ensuring unmatched strength in coastal or high-humidity areas.
• Rigid Silicon-Insulated Isolation: Equipped with a robust 180mm clearance between phases and covered in top-grade silicone rubber insulation, the DFW series completely eliminates internal flashover risks, even under intense voltage surges.
• Certified Short-Circuit Diagnostics: Outfitted with responsive short-circuit indicators and live-line voltage monitors, our distribution panels give field operators real-time visual safety tracking before any manual interaction.
• Tested High-Current Transient Defense: Validated to successfully handle thermal stability transients up to 20kA for 3 seconds and peak dynamic currents up to 50kA, this box guarantees outstanding protection for high-value upstream equipment during grid faults.
