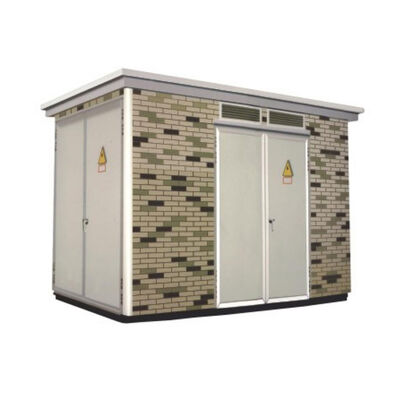

ZBW-40.5 Compact Transformer Substation Outdoor Pre Installed Substation

The ZBW-40.5 pre-installed substation is an outdoor complete set of three-phase AC 50Hz power distribution equipment engineered for complex grid systems with an upper voltage capacity of 40.5kV and a lower distribution line limit of 12kV (or 7.2kV). This high-voltage containerized substation architecture is widely utilized across public municipal grids, urban residential districts, heavy mining enterprises, industrial factories, oilfields, and large-scale engineering construction sites.

Characterized by its extraordinarily strong complete assembly structure, remarkably small land occupation footprint, highly durable aesthetic appearance, simple field installation parameters, and minimal lifecycle operational costs, it offers a premium degree of comprehensive automation, exceptional structural safety, and high operational reliability.

• Compact & Pre-Engineered Blueprint: Integrates high-voltage switchgear, efficient distribution transformers, and low-voltage control loops into a single factory-tested enclosure, minimizing land acquisition requirements.

• Premium All-Weather Resilience: Outer enclosure shell is fabricated to resist extreme wind speeds up to 34m/s, heavy moisture condensation up to 95% relative humidity, and aggressive ambient corrosion, making it perfect for coastal and desert deployment.

• High Short-Circuit Breaking Capacity: Engineered to safely withstand severe electrical grid transients with a short-circuit breaking threshold up to 31.5kA and peak thermal currents up to 80kA.

• Intelligent Automated Monitoring: Seamlessly accommodates remote terminal units (RTUs) and multi-channel sensory telemetry for fully digitized, unmanned substation monitoring and real-time fault diagnostics.

• Z: Combined / Pre-installed Variant (Classification Code)

• B: Substation Structure Type

• W: Outdoor Application Environment

• [ ]: Specific Design Generation Serial Number

• 40.5: Rated Primary Circuit Working Voltage Level (kV)

• Altitude Limits: Configured for continuous open-air grid operations up to a standard installation altitude of 1000 meters above sea level.

• Ambient Air Temperature Parameters: Safely maintains internal dielectric characteristics within an exterior air temperature spectrum between -25°C and +40°C.

• Wind Pressure Tolerance: External frame is structural-certified to fully withstand high wind velocities not exceeding 34m/s.

• Relative Humidity Thresholds: Daily average relative humidity must not cross 95%, and monthly average values must remain below 90% to avoid premature insulation creepage tracking.

• Seismic and Chemical Structural Integrity: Designed to maintain structural safety in environments with no regular severe mechanical vibration shocks, no fire or explosion hazards, and no class-3 aggressive chemical corrosion pollutants.

Constructing multi-voltage outdoor primary power grids in heavy industrial sites or remote areas demands robust durability, safety, and operational simplicity. JNCN Power delivers an unmatched complete solution through the following technical highlights:

• Elite Containerized Layout Optimization: By merging step-down transformers and protection bays within a pre-tested, heavy-duty metallic framework, JNCN saves up to 70% of land surface requirements compared to traditional brick-and-mortar substations.

• Ultimate Typhoon & Environmental Defenses: Certified to survive high wind pressures up to 34m/s and 95% humidity drops, our enclosures prevent moisture ingress and mechanical buckling in coastal marine air or intense sandstorms.

• Premium Fault Suppression & Rating: Armed with an ultra-fast sub-80ms internal breaker action, it safely handles huge grid transients up to 31.5kA short-circuit breaking thresholds to provide excellent damage protection for high-value upstream equipment.

• Seamless Grid Automation Integration: Equipped with built-in remote telemetry blocks and intelligent multi-channel tracking arrays, our ZBW substations allow real-time automated data sharing, reducing operational costs for unmanned grid management.
