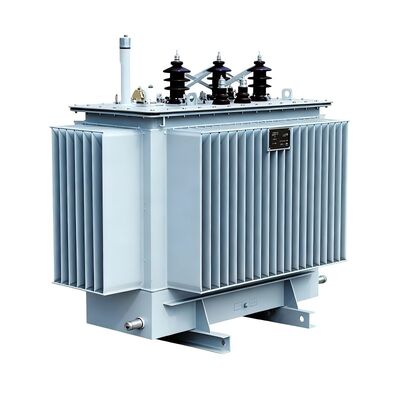

S22-TR 10kV Oil Immersed Transformers Innovative Capacity Regulating Transformer

The S22-TR-10kV series oil-immersed capacity-regulating transformer is an advanced, highly efficient power distribution solution independently developed to address the distinct challenges of rural power grids. These environments typically present highly scattered loads, pronounced seasonal demand spikes, and low average load factors. To dynamically combat these inefficiencies, this innovative transformer is engineered with a dual-capacity operating mechanism. It can automatically or systematically adjust its operational capacity output based on the real-time electrical load magnitude. This capability provides an ideal equipment upgrade path for grid energy-conservation retrofitting, rural agricultural grid modernization, as well as integrated production, lighting, and power distribution systems.

Structurally, the transformer utilizes a specially designed, non-excitation capacity-regulating tap changer to execute seamless transitions between its large-capacity and small-capacity states. When running under the small-capacity mode, its core technical performance indices surpass those of conventional single-capacity standard products. Specifically, its no-load losses drop significantly by 20%, and its no-load current is reduced by an impressive 60%. This dramatically cuts down grid standing losses during off-peak periods, offering an elegant engineering solution to the widespread industrial problem of "a large horse drawing a small carriage" and providing outstanding energy-saving performance.

• Intelligent Dual-Capacity Adaptation: Engineered with dual large/small rated capacities to dynamically match shifting seasonal and agricultural grid loads.

• Substantial Off-Peak Energy Savings: Operating in small-capacity mode reduces no-load losses by 20% and no-load current by 60% compared to standard systems.

• Elimination of Grid Inefficiencies: Seamlessly resolves the traditional "large horse drawing a small carriage" asset underutilization problem when load levels fall below 40%.

• Advanced Winding & Switch Configuration: Utilizes a highly specialized non-excitation capacity-regulating switch to alter high/low voltage winding connections smoothly.

• Robust Weatherproof Reliability: Housed in a fully sealed oil-immersed structural enclosure utilizing efficient ONAN (Oil Natural Air Natural) cooling for dependable outdoor service.

• S: Three-phase grid system configuration.

• 13: Performance level designator.

• TR: Capacity-regulating structural type symbol.

• [Modular Slots]: Denotes Rated Large Capacity (Small Capacity) in kVA / High-Voltage Class Rating (kV).

• Optimized Grid Deployment: Designed specifically for regional agricultural grids, remote rural power networks, and decentralized township public distribution zones characterized by sharp peak-to-valley load ratios.

• Ambient Thermal Range: Suitable for heavy outdoor continuous operation across standard continental and seasonal climate zones.

• Cooling System Orientation: Relies on robust Oil Natural Air Natural (ONAN) thermal dissipation, requiring unobstructed ambient air circulation at the installation site.

(Note: Values inside parentheses represent parameters under the small-capacity state; Tap adjustment range is ±5% or ±2 * 2.5%).

Rural and seasonal distribution zones encounter severe efficiency losses when oversized transformers run near-empty for months. The JNCN S22-TR series answers this operational challenge directly:

• Dynamic Grid Self-Adaptation: Seamlessly shifts connection topology via a specialized tap changer, allowing a single installation to handle peak harvesting loads and low off-season idling elegantly.

• Drastic Cost Reductions: Cuts no-load power consumption by 20% and excitation current by 60% during off-peak periods, allowing network operators to recover capital expenditure via lowered operational line losses.

• Engineered for Low-Load Scenarios: When grid loads drop under 40%, it drops to its small-capacity threshold, eliminating core over-excitation and system grid stress.

• Proven Agricultural Resilience: Combining standard ONAN cooling with an oil-immersed design, it withstands high dust, ambient humidity fluctuations, and harsh open-air environments.
