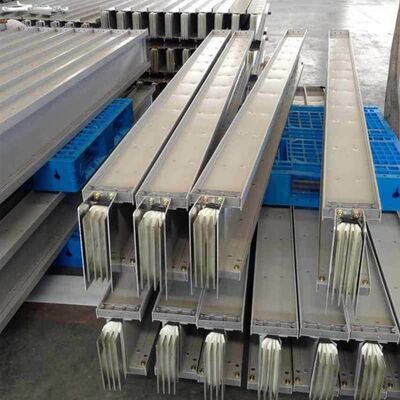

JCM8/JCK8 Series Busway Cable Flexible Installation Air Insulated Busbar

The JCM8 and JCK8 series bus ducts represent a premier low-voltage power transmission and distribution solution engineered for standard three-phase AC power systems with a operating frequency of 50Hz (or 60Hz) and a rated operating voltage of up to 660V. These busways support heavy-current configurations with a wide rated operating current range spanning from 100A up to a massive 5000A, making them an ideal choice for main power supply and sub-distribution networks. Designed to deliver compact physical volume, optimized transmission capacity, high short-circuit strength, and multi-directional flexible installations, this series ensures zero non-interference power isolation across modern high-density loads.

The system features integrated plug-in sockets that allow downstream power to be conveniently led out through specialized plug switch box units, making it exceptionally versatile for adapting to dynamic floor layout changes. This makes it a perfect replacement for traditional, bulky power cables in modern large-scale industrial complexes, commercial high-rise buildings, engineering experimental bases, and medium-to-large corporate workspaces. It can link power directly from the main transformer terminal into distribution switchgear cabinets smoothly.

• Ultra-High Current Span: Engineered to support heavy-duty power lines, smoothly accommodating currents from 100A up to 5000A within a minimized physical cross-section.

• Modular Plug-In Design: Outfitted with robust plug-in tapping sockets, allowing rapid, secure power take-off via plug switch boxes without cutting main power lines.

• Exceptional Thermal & Mechanical Life: Crafted to handle severe electro-motive force and short-circuit thermal stresses, with a short-circuit withstand capacity (Icw) up to 80kA.

• Superior Anti-Interference Clearance: Features precise internal phase structural isolation, ensuring high insulation resistance exceeding 20MΩ for reliable operation.

• J: JNCN Brand System Architecture Designation

• CM8 / CK8: Core Product Structural Series Code (CM8 for Dense Composite Sandwich Matrix; CK8 for Ventilated Air-Insulated Architecture)

• [Modular Slots]: Denotes specific technical parameters including rated operating current, wire system configuration, and design numbers.

• Ambient Operating Space: Recommended for standard indoor installations, industrial plant floors, and dedicated electrical shafts.

• Anti-Moisture Control: Operates reliably in standard industrial ambient environments with strict protection against direct rainwater entry or severe conductive dust accumulation.

• Structural Safety Foundation: Designed to be mounted horizontally or vertically using heavy-duty spring hangers and brackets to isolate external mechanical vibrations.

• Thermal Dissipation: Requires unobstructed air circulation around the busway enclosure enclosure to ensure natural heat dissipation during high-current operations.

Modern commercial and industrial facilities require safe, continuous, and highly compact power distribution trunks. JNCN JCM8/JCK8 busways deliver unmatched performance over legacy cable systems through several distinct advantages:

• Massive Power Density & Space Savings: Replaces bulky cable runs with a compact, ultra-slim sandwich or air-insulated block enclosure, saving up to 60% of physical space in tight riser shafts.

• Uncompromising Short-Circuit Armor: Engineered to withstand immense thermal and electro-motive surges up to 80kA without structural deformation, ensuring permanent operational security.

• On-Demand Power Tapping: Features integrated modular plug sockets, allowing technicians to link plug switch boxes and extend new branch lines safely and quickly without facility-wide shutdowns.

• Excellent Insulation Reliability: Validated to maintain standard insulation levels over 20MΩ under 2500V dielectric tests, completely preventing cross-phase interference.
