Commercial Photovoltaic Grid Connected Metering Cabinet High Power New Energy Equipment

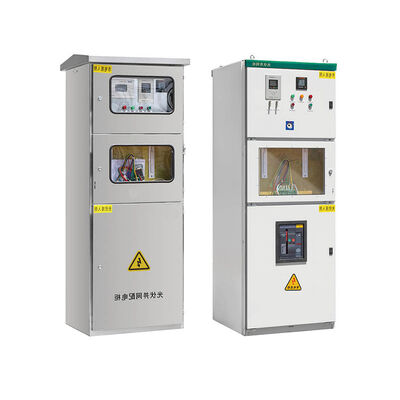

The JNGGD photovoltaic grid-connected metering cabinet is a specialized new energy power distribution assembly designed primarily for 100kW–2000kW high-power industrial and commercial solar PV grid-tied generation systems. Positioned in series between the grid-connected inverter (or AC combiner box) and the utility power grid, this cabinet integrates comprehensive intelligent metering, data collection, and multi-tier grid defenses. It features a reserved space for the local utility's metering meter and collector components with a clear inspection window and lead-seal design to prevent unauthorized power modification or electricity theft.

Engineered for optimal automation, the unit includes critical protection features such as anti-islanding, over/under-voltage tripping, loss-of-pressure protection, system over-current defense, and grid isolation, allowing operators to monitor system status at a glance. Fully validated under industry-standard CCC, CE, and ISO9001 quality frameworks, this cabinet comes in flexible indoor or outdoor physical footprints, making it an essential hub for safe, reliable, and standardized commercial solar power integration.

• Anti-Theft Dual-Seal Design: Features a dedicated, secure utility metering section equipped with a transparent viewing window and robust anti-electricity theft lead-seal locks.

• Comprehensive Islanding & Grid Defenses: Outfitted with automatic anti-islanding control links, phase failure protection, and automatic reclosing to guard solar assets against local grid instability.

• Industrial Anti-Corrosion Armor: Built from heavy-duty cold-rolled steel plates with specialized plastic spraying or high-grade stainless steel, passing a 336-hour salt spray test.

• Flexible Indoor/Outdoor Configurations: Offers versatile physical cabinet styles tailored for both indoor plant floors and harsh outdoor ground-mounted solar fields.

1. JN: Company Brand Architectural Code (JNCN)

2. GGD: Low-Voltage Fixed Type Distribution Enclosure Base Structure

3. [Photovoltaic Application]: Explicitly designated for commercial solar grid-tied metering and circuit management

• Ambient Operating Temperatures: Certified to work reliably in extreme seasonal environments from -25°C up to +60°C.

• Relative Humidity Thresholds: Operates smoothly in 0% to 90% non-condensing relative humidity environments.

• Altitude Adaptability: Internal clearances and insulation targets are fully rated for high-elevation installations up to 3000m above sea level.

• Atmospheric Cleanliness: Requires installation in clean spaces free from highly corrosive gases, flammable vapors, conductive dust, or severe salt pollution.

Industrial solar generation demands precise anti-theft metering, multi-channel inverter routing, and reliable anti-islanding fail-safes. JNCN Power provides a premier system built on the following advantages:

• Versatile Multi-Channel Routing: Supports 1 to 5 independent inverter input roads up to a massive 4000A frame current, accommodating complex multi-inverter solar fields.

• Heavy-Duty Grid Protection Suite: Combines automatic reclosers, surge arresters (Imax 40kA), and anti-islanding links to decouple solar assets instantly during local grid surges.

• Tamper-Proof Utility Security: Engineered with strict utility-grade lead-seal lock brackets and transparent viewing windows, streamlining grid inspections while preventing power theft.

• Resilient Harsh-Climate Enclosures: Features 336-hour salt spray certification and 3000m high-altitude insulation ratings, ensuring dependable performance in humid coastal areas and high-mountain solar fields.
