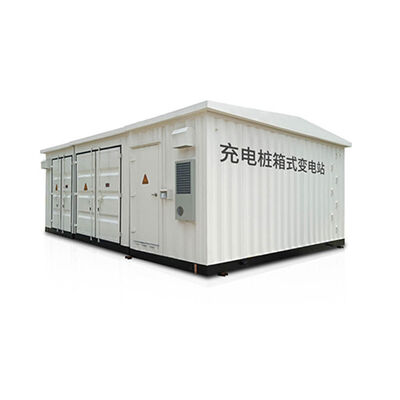

800kVA New Energy Equipment Three Phase Column Core EV Charging Substation
Key Attributes
Brand Name:
JNCN
Model Number:
JNYB
Place of Origin:
China
Certification:
ISO 9001, CCC, CE
Minimum Order Quantity:
1
Supply Ability:
5,000 Units per Year
Delivery Time:
Est. 15 days
Standard Packaging:
Wooden Crates on Pallets
Product Summary
JNYB Charging Pile Substation: 800kVA capacity with integrated harmonic filtering, dual 10kV/380V voltage support, and compact containerized design for rapid EV infrastructure deployment. IP54-rated, compliant with EVSE standards.
Product Custom Attributes
Highlight
800kVA New Energy Equipment
,800kVA EV Charging Substation
,Three Phase New Energy Equipment
Rated Capacity:
800kVA
Voltage Ratio:
380V / 10kV Or 10kV / 380V
Switchgear Type:
SF6 Gas-insulated Or Vacuum Circuit Breaker
Filtering Branches:
L, C, L, C (5th, 7th, 11th, 13th Harmonics)
Protection Class:
IP44/IP54
Cooling System:
Intelligent ONAN / ONAF
Product Description
JNYB Charging Pile Box-type Substation
Product Overview
The JNYB Series Charging Pile Box-type Substation is an integrated, high-efficiency power conversion solution engineered for the global EV (Electric Vehicle) infrastructure market. This system acts as the critical bridge between the high-voltage grid and EV charging networks, converting 380V AC to 10kV for power transmission, or stepping down 10kV to 380V AC for direct high-power charging.
It is a complete turnkey solution housing a high-efficiency transformer, high/low voltage switchgear, harmonic filtering equipment, and advanced protection systems in one robust, compact enclosure.
Main Technical Parameters (JNYB)
-
Rated Capacity: Up to 800kVA (Customizable)
-
Voltage Ratio: 380V / 10kV or 10kV / 380V
-
Switchgear Type: SF6 Gas-insulated or Vacuum Circuit Breaker options
-
Filtering Branches: L, C, L, C (5th, 7th, 11th, 13th Harmonics)
-
Protection: Over-current, Short-circuit, Zero-sequence protection
Why Choose JNCN Power JNYB Charging Substation?
-
Integrated Harmonic Suppression (Active/Passive Filtering) EV charging loads are notorious for injecting harmonic distortion into the grid. Our JNYB stations are equipped with specialized filtering equipment (targeting the 5th, 7th, 11th, and 13th harmonics). This ensures a clean power supply, protects the grid's stability, and prevents interference with nearby sensitive electronic equipment.
-
Dual-Directional Voltage Versatility Unlike standard substations, the JNYB is designed for the specific needs of EV stations. It can convert 380V to 10kV for specialized high-voltage charging piles or step down 10kV to 380V for standard commercial industrial use, offering unmatched flexibility for site developers.
-
Rapid EV Infrastructure Deployment The compact, "containerized" design is optimized for rapid site deployment. It can be installed in commercial parking lots, highway service areas, or urban charging hubs with minimal civil engineering, reducing project lead times by up to 60%.
-
Intelligent Safety & Protection Equipped with zero-sequence current protection, over-current cut-off, and intelligent thermal management, the station is designed for 24/7 unmanned operation in public spaces, ensuring absolute safety for both the equipment and the end-user.
Related Products
Commercial Photovoltaic Grid Connected Metering Cabinet High Power New Energy Equipment
JNGGD PV metering cabinet for 100kW-2000kW systems. Features anti-theft seals, 40kA surge protection, 336-hr salt spray resistance, and supports 1-5 inverter inputs. CE/CCC certified for reliable grid integration.
