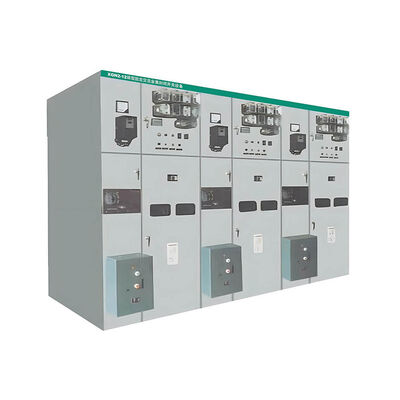

XGN2-12 Series Box Type Fixed AC Metal Enclosed Switchgear High Voltage Electrical Switchgear

XGN2-12 Box-Type Fixed AC Metal-Enclosed Switchgear is an ultra-reliable, field-proven power distribution solution engineered for high-frequency operations within medium-voltage distribution systems. It is primarily designed for accepting and distributing electrical energy in 12kV three-phase AC 50Hz single-busbar grids. The system is exceptionally well-suited for single-busbar systems with a bypass and double-busbar layouts. Additionally, JNCN Power provides a specialized high-altitude variant (XGN2-12(G)) engineered for reliable operations in mountainous or plateau regions.
The switchgear fully satisfies the requirements of national and international design criteria including GB3906 and IEC298. It incorporates an advanced, mechanical "Five-Proof" interlocking function that ensures comprehensive operator safety by preventing structural misoperations. The main switch mechanism is natively built with premium vacuum circuit breakers like the ZN28A-10 series (equipped with CT8 spring operating mechanisms or CT17/CT19 spring operating mechanisms). It also dynamically supports ZN28-10, ZN73, VS1, ZN65, VD4, VEP, and other integrated circuit breakers alongside high-current disconnecting switches such as GN22-10 and GN30-10 to fit any network architecture.

• Comprehensive Multi-Breaker Compatibility: Natively supports an expansive range of high-performance vacuum circuit breakers (ZN28A, VS1, VD4, VEP) and rotary disconnecting switches (GN30-10) for maximum engineering flexibility.

• Perfect "Five-Proof" Safety Interlocks: Heavy-duty built-in mechanical interlocking linkages prevent load-connected switching, live compartment entry, and improper grounding operations to protect field engineers.

• High-Frequency Operational Capacity: Robust mechanical structure designed to withstand frequent connections, routine fault disruptions, and high-frequency switching cycles without contact degradation.

• High-Altitude Resilient Options: Specialized plateau modifications provide augmented insulation distances and enhanced dielectric properties for high-altitude locations up to 3000m.

X G N 2 - 12 (Z)

• X: Box-type switchgear

• G: Fixed type

• N: Indoor

• 2: Design number

• 12: Rated voltage kV

• (Z): Vacuum Circuit Breaker

• Ambient Temperature Limits: Upper limit +40°C, lower limit -10°C.

• Relative Atmospheric Humidity: Daily average relative humidity not more than 95%; Monthly average relative humidity not more than 90%.

• Altitude Baseline: Standard configuration supports up to 1,000 meters above sea level (high-altitude modifications available upon request).

• Seismic / Earthquake Strength: Structural clearance rated to withstand earthquake intensities up to 8 degrees.

• Environmental Protection: The operating site must be strictly free from high fire risks, explosive hazards, serious dirt/particulate contamination, corrosive chemical fumes, and severe continuous structural vibrations.

• Versatile Engineering & Custom VCB Layouts: Unlike rigid legacy models, the JNCN Power XGN2-12 natively accommodates domestic and global high-end vacuum circuit breakers (including ZN28, VS1, and VD4), adapting flawlessly to your precise layout specifications.

• Flawless Mechanical Five-Proof Safety: Our heavy-duty mechanical interlocking architecture functions without reliance on electronic signals, establishing a bulletproof safety perimeter that systematically eliminates human operational hazards.

• Exceptional High-Current Handling Capabilities: Configured with robust busbars and heavy-duty components, this cabinet effortlessly handles rated currents up to 3150A and 100kA peak fault closes, making it a reliable workhorse for heavy industries.

• Specialized High-Altitude Adaptability: JNCN Power excels in specialized regional engineering; our dedicated plateau version features upgraded phase-to-phase clearance to counteract air thinning, ensuring consistent dielectric performance.

• Industrial Longevity & Low Ownership Costs: Built with premium structural materials and corrosion-resistant coatings, the XGN2-12 provides a high-efficiency, low-maintenance power backbone compliant with IEC298 and GB3906 standards.
