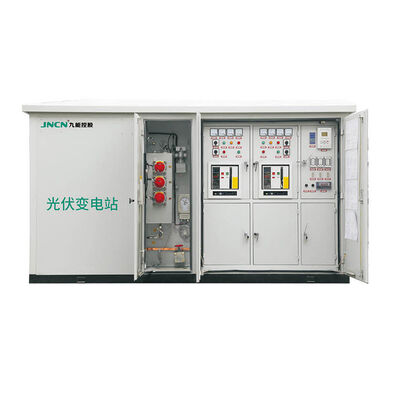

JNYB-10/0.4 Series Solar Substation 10kV 35kV IP68 Modular Photovoltaic Step Up Substation

The JNYB-10/0.4 series, also known as the Photovoltaic "Huawei" (Combined) Substation, is a high-performance power solution specifically engineered to meet the rigorous demands of the global solar energy market. As clean energy production accelerates, this substation serves as a critical link, stepping up the low-voltage output from solar inverters to 10kV or 35kV for efficient grid integration.

By integrating the transformer, high-voltage load switches, and fuses into a single, fully-sealed, and insulated unit, JNCN Power provides a compact, "plug-and-play" solution that optimizes both land use and installation speed.

• Ultra-Compact & Lightweight Design: Engineered with high power density, our substation occupies a significantly smaller footprint than traditional modular designs, making it ideal for large-scale solar farms and distributed rooftop projects.
• Advanced Surface Protection: The enclosure undergoes a specialized multi-stage treatment—including shot blasting, pickling, and phosphatizing—before receiving a high-durability primer and UV-resistant topcoat. This ensures the unit withstands extreme weathering, scratching, and UV degradation for over 25 years.
• Superior Insulation & Thermal Management: Utilizing high-grade transformer insulation liquid as both a dielectric and heat dissipation medium, the unit maintains stable core temperatures even during peak solar generation hours.
• Hermetically Sealed Reliability: The fully-sealed structure protects internal components from moisture, dust, and corrosive salt mist, making it suitable for coastal, desert, and high-altitude environments.
• Flexible Protection Schemes: Equipped with high-voltage current-limiting fuses and specialized load switches, providing comprehensive protection against overloads and short circuits.

• Extreme Altitude: Standard operation up to 5,000m, perfect for highland solar arrays.
• Temperature Tolerance: Operates reliably from -40°C to +45°C.
• Wind Resistance: Structural integrity tested against wind speeds up to 30m/s.
• Humidity Tolerance: Daily average relative humidity up to 95%.
• Safety & Stability: Designed for installation in non-hazardous areas free from fire risks, violent vibrations, or explosive gases.

1. High Conversion Efficiency: Minimizes energy loss during the step-up process, maximizing your ROI and LCOE (Levelized Cost of Energy).
2. Rapid Deployment: Factory-prefabricated and tested, reducing on-site labor costs and commissioning time by up to 50%.
3. Low Maintenance: The hermetic design and high-quality components eliminate the need for frequent oil testing or internal inspections.
4. Custom Engineering: We provide tailored electrical programs and structural layouts to match specific inverter brands and grid requirements.
